Versatile Compatibility TASK®  is a well integrated compatible with O.E.M panel systems, which components also combine easily with other TREMAIN® products to add planning options, accomplish desired features or low-cost alternatives to meet any budget demands. TASK®  offers 120-degree planning capabilities that can be used with 90-degree configurations to create unique and multifunctional work areas.

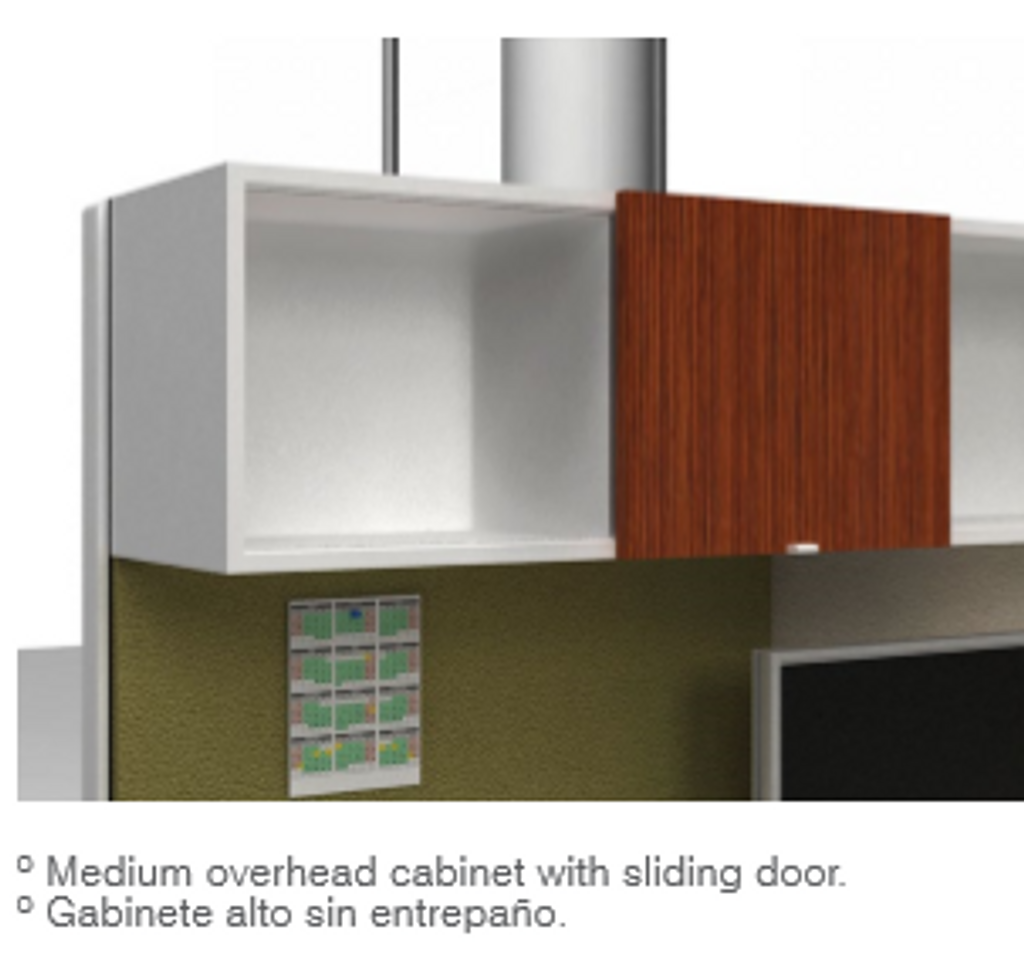

Expanding Design Options Designed as a monolithic but engineered as a segmented look, TASK®  has been developed to be the most cost effective and versatile monolithic panel system in the market. The combination of standard monolithic along with segmented panels featuring architectural elements like fabric, perforated metal, clear or frosted glazed, etc., create a refined and upgrade look. In addition, up mounted overhead storage cabinets provide savings by reducing panel heights and offering another planning alternative. TASK ® offers an 6-inch wide vertical wire way. With a removable panel insert, this vertical wire way routes cables internally from the base way to worksurface level without external cable management. Can be installed exclusively where needed and just one or both sides can be powered.

Routing technology
TASK® allows making the planning, installation and addition of electrical systems and communication cables easy and cost – effective. The hinged panel and connector raceway cover allows cables to be laid in effortlessly during installation and enables additional cables to be added quickly as requirements increase.

Power and cables can be routed horizontally throug bottom raceway and vertically through 6” wireway.
Wiring capacity (including power)

Horizontal     80 cat. 5 or 65 cat. 6

Vertical          50 cat. 5 or 40 cat. 6

Power harnesses are modular, nonhanded, and install easily. Two modular connection points at the end of each power harness allow branching of power.
Power harnesses accept up to 4 duplex receptacles; 2 per side.
Power and cables can enter the system through ceiling power entries and at the base of the panel. Receptacles and data outlets can be located at the base, or worksurface level using the 6” vertical wireway.
